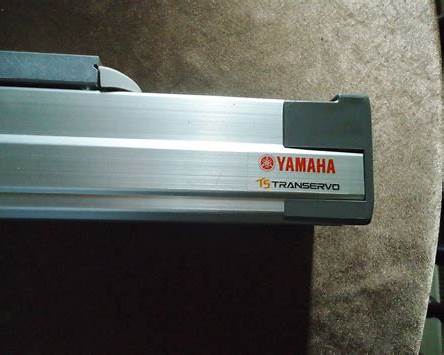

SS05-20LN-NN- 500-3K-SD1 Yamaha TRANSERVO SS series of single-axis slider actuators

The SS05-20LN-NN-500-3K-SD1 is part of Yamaha’s TRANSERVO SS series of single-axis slider actuators—compact, high-precision electric cylinders designed for industrial automation tasks. These actuators combine a closed-loop stepping motor with an integrated ball screw and guide system for smooth positioning motion.

🔧 Key Features

• Series: Yamaha TRANSERVO SS (slider-type) single-axis actuator—compact and durable.

• Model Size: SS05 — cross section approx. W55 × H56 mm.

• Lead: 20 mm ball screw — optimized for faster movement.

• Stroke: 500 mm travel range (straight slider).

• Cable: 3K indicates ~3 m actuator cable length.

• Controller Type: TS-SD1 pulse-train input driver interface.

• Suffix “NN”: Standard configuration (no brake, standard grease, standard origin).

📊 Typical Technical Specs (SS05 family)

• Repeatability: ~±0.02 mm.

• Max speed: Up to ~1000 mm/s depending on setup.

• Payload: Around 4 kg (horizontal), varies with stroke/lead.

• Closed-loop vector control eliminates step-out and maintains torque at speed.

🛠 Typical Uses

These slider actuators are ideal for:

• Part handling and transfer axes in automation

• Precision pick-and-place operations

• Conveyor indexing and fixture motion

• Assembly or inspection motion axes

They’re valued for compact footprint, high speed, and closed-loop accuracy in systems where space and response time matter.
